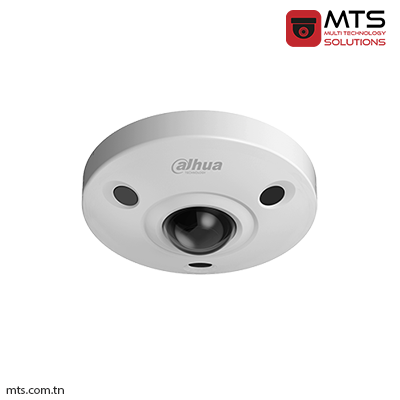

CAMERA IP DAHUA FISHEYE 12MP PANORAMIC POE IK10 IP67 IR 10M Voir plus grand

IPC-EBW81230P CAMERA IP DAHUA FISHEYE 12MP PANORAMIC POE IK10 IP67 IR 10M

Nouveau produit

12MP Panoramic Network IR Fisheye Camera

 1/1.7” 12Megapixel progressive scan STARVIS™ CMOS
H.265/H.264 triple-stream encoding
Max 25fps@12M(4000×3000)
Multiple dewarped Mode
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart detection
Intelligent Function
Max> IR LEDs length 10m
Micro SD memory, IP67, IK10, PoE

Plus de détails

IPC-EBW81230P

  • Description

    Camera
    Image Sensor 1/1.7” 12Megapixel progressive scan CMOS
    Effective Pixels 4000(H)x3000(V)
    RAM/ROM 1024MB/128MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
    Minimum Illumination 0.001Lux/F2.8( Color,1/3s,30IRE)

    0.01Lux/F2.8( Color,1/30s,30IRE)

    0Lux/F2.8(IR on)
    S/N Ratio More than 50dB
    IR Distance Distance up to 10m(33ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 3
    Lens
    Lens Type Fixed
    Mount Type Board-in
    Focal Length 1.98mm
    Max. Aperture F2.8
    Angle of View H: 180˚, V:180˚
    Optical Zoom N/A
    Focus Control Fixed
    Close Focus Distance N/A
    DORI Distance Detect Observe Recognize Identify
    42m(138ft) 17m(56ft) 8m(27ft) 4m(14ft)
    Pan/Tilt/Rotation
    Pan/Tilt/Rotation Range N/A
    Intelligence
    IVS Tripwire, Intrusion
    Advanced Intelligent Functions Heat Map
    Video
    Compression H.265/H.264
    Streaming Capability 3 Streams
    Resolution 12M(4000×3000)/ 8M(2880×2880)/ 6M(2880×2160)/ 3M(2048×1536)/ 1.3M(1280×960)/ D1(704×576/704×480)/ CIF(352×288/352×240)
    Frame Rate Main Stream: 12M(1~25fps)/ 8M(1~25/30fps)
    Sub Stream: D1(1 ~ 25/30fps)
    Third Stream: 1.3M(1 ~ 25/30fps)
    Bit Rate Control CBR/VBR
    Bit Rate H.265: 3Kbps~ 9984Kbps

    H.264: 8Kbps~ 16384Kbps
